Solar Panel Racking System

Raysol Energy undertakes the complete construction of a photovoltaic project, starting from the consolidation of the ground, the fencing, the placement of the piles with our machine, the base assembly, the placement of the panels and ending with the installation of electrical, Medium Voltage substation, inverters, safety systems, connection device.

Send Inquiry

PRODUCT INTRODUCTION

Our aluminum solar panel racking system is developed for the large scale ground solar projects or flat rooftop. The solar panel racking system main components are high pre-assembled in our factory, which save lots of your on site installing time and cost. Components are full sides anodized even for small parts, which has a great anti-corrosion effect and long lifetime.

Solar Panel Racking System design 2 — Solar Panel Racking System Design

Technical Data

Install Site	Open field area
Max Wind Speed	≤60m/s
Snow Load	≤1.4KN/M2
Tilt Angle	0-45 degree
Applicable Module	Framed or frameless
Module Orientation	Landscape, portrait
Standards	AS/NZS 1170, ASCE 7-10, JIS2017
Material	AL6005-T5, SUS304
Anti-corrosive	Anodized
Color	Silver, Black
Warranty	12 years

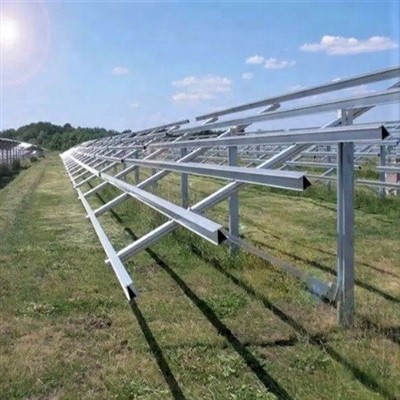

solar panel mounting installation — Solar Panel Racking System Installation

Key Features

- Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production.

- To provide you with the most cost-effective solar racking solution.

- Full anodize for all components---offering 12 year warranty and 25 year life time.

- Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.

- Components are highly pre-assembled at the factory, saving you a lot of time and cost.
