Product Introduction:

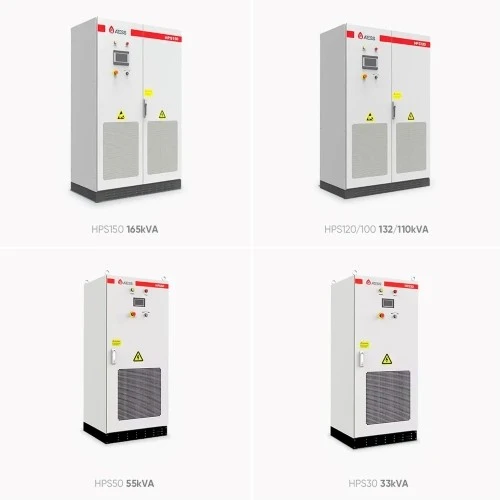

HPS30/50/100/120/150 Hybrid Inverter
Advantages:
* All in one hybrid inverter.
* Programmable working mode.
* Scalable design: Quadruple capacity by paralleling 4 units to maximum 600kw output and 900kw solar panels
* Hot back-up One inverter fails in parallel system, the other(s) takes over seamlessly.
* Touchscreen LCD: More convenient for parameter setting and maintenance.
* Seamless transfer: Uninterruptable power supply guaranteed.
* Dry contact output: Supports remote control of DG.
Monitoring Solution
Shine Master Data logger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with server via internet.
Mobile phone app available on both IOS and Android to access to cloud for online monitoring and maintenance
Product Parameters:
|
Mdoel |
HPS30 |
HPS50 |
HPS100 |
HPS120 |
HPS150 |
|
AC (Grid-connected) |
|||||
|
Apparent power |
33kVA |
55kVA |
110kVA |
132kVA |
165kVA |
|
Rated power |
30kW |
50kW |
100kW |
120kW |
150kW |
|
Rated voltage |
400V |
||||
|
Rated current |
43A |
72A |
144A |
173A |
217A |
|
Voltage range |
360V - 440V |
||||
|
Rated frequency |
50/60Hz |
||||
|
Frequency range |
45~55/55~65Hz |
||||
|
THDI |
<3% |
||||
|
PF |
0.8lagging~0.8leading |
||||
|
AC connection |
3/N/PE |
||||
|
AC input |
60kVA |
100kVA |
200kVA |
240kVA |
240kVA |
|
AC(Off-grid) |
|||||
|
Apparent power |
33kVA |
55kVA |
110kVA |
132kVA |
165kVA |
|
Rated power |
30kW |
50kW |
100kW |
120kW |
150kW |
|
Rated voltage |
400V |
||||
|
Rated current |
43A |
72A |
144A |
173A |
217A |
|
THDU |
≤2%linear |
||||
|
Rated frequency |
50/60Hz |
||||
|
Overload capability |
110%-10 mins 120%-1 min |
||||
|
DC (Battery and PV) |
|||||
|
Max PV open-circuit voltage |
1000V DC |
||||
|
MAX PV power |
45kWp |
75kWp |
150kWp |
180kWp |
225kWp |
|
PV MPPT voltage range |
480V-800V DC |
||||
|
Battery voltage range at Max.charge power |
450V-600V |
500V-600V |
500V-600V |
517V-600V |
500V-600V |
|
Battery voltage range |
352-600V |
||||
|
Max.charge power |
45kw |
75kw |
150kw |
180kw |
225kw |
|
Max.discharge power |
33kW |
55kW |
110kW |
132kW |
165kW |
|
Max.charge current |
100A |
150A |
300A |
350A |
450A |
|
Max.discharge current |
93A |
156A |
313A |
374A |
467A |
|
General Information |
|||||
|
Protection degree |
IP20 |
||||
|
Noise emission |
<65dB(A)@1m |
||||
|
Operating temperature |
-25 °C~+55 °C |
||||
|
Cooling |
Forced-air |
||||
|
Relative humidity |
0-95% non-condensing |
||||
|
Maximum altitude |
6000m (derate over 3000m) |
||||
|
Dimension (W/H/D) |
950/1860/750mm |
1200/1900/800mm |
|||
|
Weight |
505kg |
610kg |
948kg |
1025kg |
1230kg |
|
Build-in transformer |
Yes |
||||
|
Transfer between on/off grid |
Automatic≤10ms |
||||
|
Standby consumption |
<30w |
||||
|
Communication |
|||||
|
Display |
Touch screen |
||||
|
Communication |
RS485/CAN |
||||
|
Certificate |
|||||
|
Certificate |
CE, MEA, PEA, EN 61000-6-4:2007+A1:2011, EN61000-6-2:2005, EN62109-1:2010, EN62109-2:2011 |
||||
Recommend Battery Pack
● Easy installation and maintenance
Local and remote management, standard rack module design, front maintenance
● Safety first
Self-developed 3-level BMS, complex protection, safe and reliable
● High density
LFP high-capacity Li-Ion battery with aluminum shell, over 130wh/kg
● Long lifespan
Long cycle life, 6000 cycles *
Battery Pack capacity: 7.68kwh, Battery Rack Capacity from 40kwh to 150kwh
FAQ
Q: What is a 100KW hybrid solar inverter?
A: A 100KW hybrid solar inverter is a device that converts DC electricity generated by solar panels into AC electricity for use in homes or businesses. It also has the capability to store excess solar energy in batteries for later use when the sun is not shining.
Q: What are the advantages of a hybrid inverter?
A: The main advantage of a hybrid inverter is its ability to store excess solar energy in batteries for later use. This allows for greater energy independence and can save money on electricity bills. Additionally, a hybrid inverter can switch seamlessly between grid power and battery power, ensuring uninterrupted power supply during power outages.
Q: What types of batteries are compatible with a 100KW hybrid inverter?
A: A 100KW hybrid inverter is compatible with a variety of battery types, including lead-acid, lithium-ion, and flow batteries. The type of battery used will depend on factors such as energy storage capacity, cost, and lifespan.
Q: What is the maximum efficiency of a 100KW hybrid inverter?
A: The maximum efficiency of a 100KW hybrid inverter can vary depending on the specific model, but typically ranges from 95% to 98%.
Q: What is the lifespan of a 100KW hybrid inverter?
A: The lifespan of a 100KW hybrid inverter can vary depending on factors such as usage, maintenance, and environmental conditions. However, a well-maintained hybrid inverter can last up to 20 years or more.
Q: Is a 100KW hybrid inverter suitable for large-scale commercial use?
A: Yes, a 100KW hybrid inverter is suitable for large-scale commercial use, such as in factories, shopping malls, or office buildings. It can also be used in residential buildings with high energy demands.
