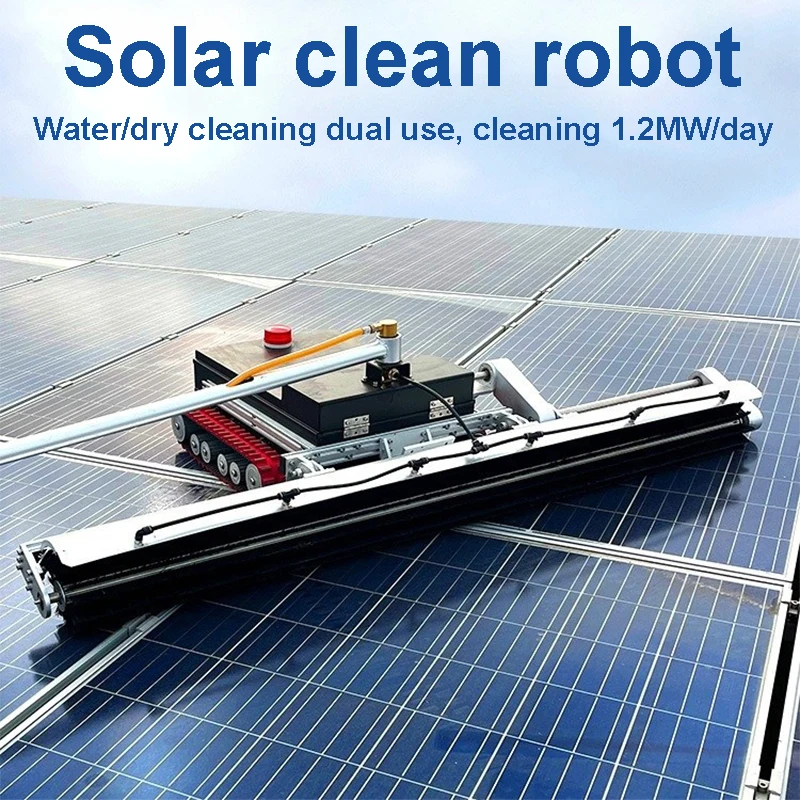

Our PVl cleaning robot focuses on solving the environment where people cannot stand or telescopic poles cannot be cleaned. Robots can be used for remote cleaning. It is a special cleaning equipment designed, developed and manufactured according to the special environment of photovoltaic power plants in any country. It is the perfect solution for all kinds of solar projects. Whether you have a rooftop on-grid solar system, ground on-grid solar system, PV carport system, or agrivoltaic system, our cleaning robots will ensure that your solar panels are spotless and working at maximum efficiency.
|
Product parameters
|
||||
|
Rolling brush
|
speed 500 rpm
|
|||
|
Travel speed
|
11-12 meters/minute
|
|||
|
Cleaning width
|
1.1meters
|
|||
|
Working voltage
|
DC 24V
|
|||
|
Working angle
|
≤30 °
|
|||
|
Power supply method
|
Lithium battery (24V * 2)
|
|||
|
Range time
|
3-4 hours
|
|||
|
Cleaning type
|
dry cleaning, water cleaning
|
|||
|
Control method
|
remote control handle control
|
|||
|
External dimensions
|
1190* 970* 350mm
|
|||
|
Equipment weight
|
29kg (excluding battery)
|
|||
Under the control of the remote control, the crawler chassis all-terrain operation robot can realize forward, backward, left and right turns, etc., so as to walk in any direction on the solar panel and perform all-round cleaning operations without dead ends. The electric roller brush washing and dry cleaning dual-purpose robot is equipped with a rotating cleaning roller brush at the front end, and a water nozzle is installed on the upper end of the roller brush. The combination of the two realizes the efficient cleaning of solar panels. 150 meters remote control cleaning. The robot adopts a long-distance wireless remote control method, with a control distance of 150 meters and more flexible use. Clean about 1.2MW a day.
Instruction & Warranty
The warranty period is 12 months for drive motors, batteries, and chargers, and 6 months for electronic components.
Packing & Delivery
Each set packing seperately in wooden case
